NEVB-NMUX1308模拟开关评估板

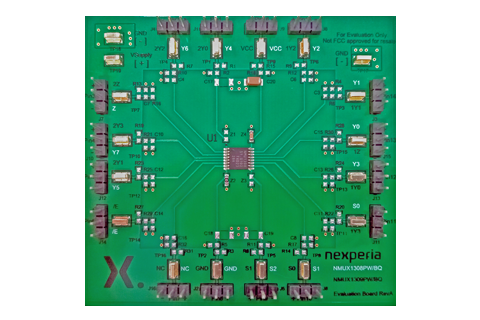

NMUX1308 EVB（评估板）是专为Nexperia的CMOS、双向、8通道模拟开关设计的PCB。该评估板接受PQ和BQ两种封装形式，适用于器件的两种型号。能够通过测试点和连接器，轻松访问电源和信号引脚，实现快速且简便的设置。
主要特性与优势
• 宽工作范围：1.5 V至5.5 V
• 控制信号引脚在较高VCC下可保持1.8 V逻辑电平兼容性
• 模拟信号引脚上采用轨至轨运行
• 断电保护：确保从I/O引脚到VCC之间不存在ESD路径
• 注流控制：耦合不超过1 mV/mA
• 控制信号引脚上采用失效保护逻辑
• 引脚兼容行业标准74HC4051/74HC4052和74HC4851/74HC4852模拟开关产品
• 额定温度范围为-40℃至+85℃和-40℃至+125℃
• VCC、GND、Yn(1Yn、2Yn)、Z(nZ)和Sn引脚上具备测试点
• 适用于定制分压器电路的无源元件布局
• 可选择使用将输入连接至VCC或GND的跳线座
• 评估板支持NMUX TSSOP16或DHVQFN16封装
