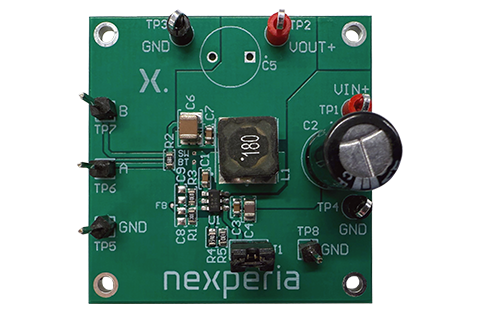

NEX40400EVM-05：4.5 V到40 V，600 mA，FPWM，1.05 MHz，同步降压转换器评估板
NEX40400EVM-05评估板是组装在两层PCB上的降压DC-DC开关电压转换器的参考设计。它支持测试NEX40400降压转换器的功能和性能。
主要特性和优势
• 4.5 V到40 V输入电压范围
• 600 mA连续输出电流
• 5 V输出
• 1.05 MHz开关频率的强制PWM工作模式
• 适用于高转换率和低压差应用的频率折返
• 内部补偿
• 带间歇模式的短路保护
