NXF6505B-Q100评估板

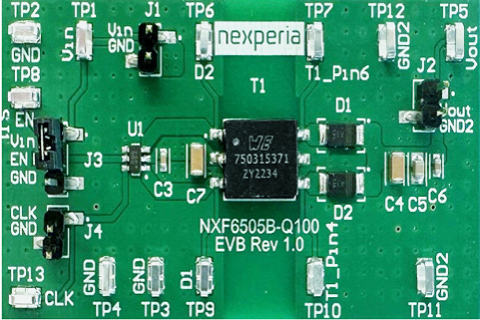

NXF6505B评估板可评估Nexperia的NXF6505B，后者是用于隔离电源的低噪声、1.2 A推挽式变压器驱动器。该EVB可为隔离电源提供一个正输出电压。为便于评估该EVB，增加了用于测量电路电压的测试点。
NXF6505B-Q100评估板
主要特性与优势
输入电压范围：VCC = 2.25 V至5.5 V
• 最大输出电流：
• NXF6505B-Q100: 1.2 A
• 启用引脚
• 外部时钟引脚
• 故障安全输入
板上的产品 (1)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
NXF6505BDA-Q100 | Low-noise, 1.2 A transformer driver for isolated power supplies | Development |
|
相关板块 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
nxf6501-q100-evaluation-board | NXF6501-Q100 evaluation board | Evaluation board | ||
|
nxf6505a-q100-evaluation-board | NXF6505A-Q100 evaluation board | Evaluation board |
板上的产品 (1)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
|
NXF6505BDA-Q100 | Low-noise, 1.2 A transformer driver for isolated power supplies | Development |
|
相关板块 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
|
nxf6501-q100-evaluation-board | NXF6501-Q100 evaluation board | Evaluation board | ||
|
|
nxf6505a-q100-evaluation-board | NXF6505A-Q100 evaluation board | Evaluation board |
文档 (1)
| 文件名称 | 标题 | 类型 | 日期 |
|---|---|---|---|
| UM90035 | NXF6505B-Q100 Low noise, 1.2 A transformer driver for isolated power supplies evaluation board | User manual | 2024-07-02 |
