主要特性和优势
- 降低信号衰减可产生低开关损耗
- 降低总谐波失真可实现高品质音频切换
- 支持模拟传感器信号多路复用 - 减少ADC的数量
- 控制信号接口至低电压控制器的集成式电平转换
- 低导通电阻和导通电阻平坦度
- 低开关泄漏
- 宽电源电压
- 低输入阈值输入选项
- 过压容限选项
- 高ESD保护，符合IEC61000标准
关键应用
- 音频/视频源选择
- 模拟传感器多路复用
- GPIO扩展
- 总线隔离
参数搜索
Analog switches
数据加载中，请稍候...参数搜索不可用。
产品
| 型号 | 描述 | 状态 | 快速访问 |
|---|---|---|---|
| 74HC4066BZ | Quad single-pole single-throw analog switch | Production | |
| 74HCT4066BZ | Quad single-pole single-throw analog switch | Production | |
| 74HCT4316DB | EndOfLife | ||
| 74LVCV2G66GM | Overvoltage tolerant bilateral switch | EndOfLife | |
| NMUX1237GW | 2-channel analog multiplexer/demultiplexer | Production | |
| NMUX27518BY | 6-channel, 1-of-2 multiplexer and demultiplexer | Production | |
| NMUX27518EBY | 6-channel, 1-of-2 multiplexer and demultiplexer | Production | |
| NMUX27518EPW | 6-channel, 1-of-2 multiplexer and demultiplexer | Production | |
| NMUX27518PW | 6-channel, 1-of-2 multiplexer and demultiplexer | Production |
Visit our documentation center for all documentation
Brochure (1) |
|||
|---|---|---|---|
| 文件名称 | 标题 | 类型 | 日期 |
| Nexperia_document_guide_MiniLogic_PicoGate_201901.pdf | PicoGate leaded logic portfolio guide | Brochure | 2019-01-07 |
Leaflet (2) |
|||
| 文件名称 | 标题 | 类型 | 日期 |
| 1_8V_General_purpose_injection_control_analog_switch_leaflet.pdf | 1.8 V General purpose SP8T-Z and 2x SP4T-Z analog switches with injection current control | Leaflet | 2024-03-05 |
| Nexperia_document_leaflet_Logic_X2SON_packages_062018.pdf | X2SON ultra-small 4, 5, 6 & 8-pin leadless packages | Leaflet | 2018-06-05 |
Marcom graphics (1) |
|||
| 文件名称 | 标题 | 类型 | 日期 |

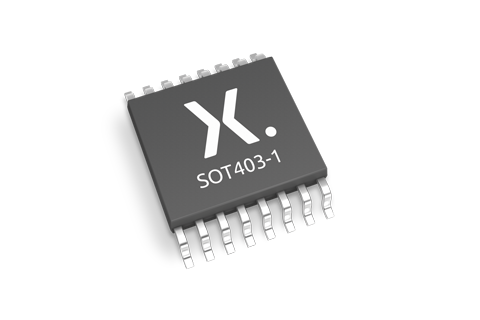

| TSSOP16_SOT403-1_mk.png | plastic, thin shrink small outline package; 16 leads; 0.65 mm pitch; 5 mm x 4.4 mm x 1.1 mm body | Marcom graphics | 2017-01-28 |
