汽车通用肖特基二极管≤ 250 mA

从我们的众多产品中找到最适合您设计的肖特基二极管

高能效的通用解决方案，具备压力保护和低正向电压降，采用超小薄型表贴封装。非常适合反向极性保护、低压整流以及DC-DC转换电源管理应用。

主要特性和优势

  • 集成压力保护环
  • 更高的效率
  • 超小薄型表贴封装
  • 广泛的产品组合
  • 低正向电压降
  • 低电容

关键应用

  • 反向极性保护
  • 电源管理，尤其适用于DC-DC转换
  • 通用应用开关
  • 低压整流

参数搜索

Automotive general purpose Schottky diodes ≤ 250 mA
数据加载中，请稍候...
参数搜索不可用。

产品

型号 描述 状态 快速访问
1PS70SB10-Q Schottky barrier single diode Production
1PS70SB14-Q Dual Schottky barrier diode Production
1PS70SB15-Q Dual Schottky barrier diode Production
1PS70SB16-Q Dual Schottky barrier diode Production
1PS70SB40 General-purpose Schottky diode Production
1PS70SB44 General-purpose dual Schottky diode Production
1PS70SB45 General-purpose dual Schottky diode Production
1PS70SB46 General-purpose dual Schottky diode Production
1PS70SB86 Schottky barrier (double) diodes Production
1PS75SB45 EndOfLife
1PS76SB10-Q Schottky barrier single diode Production
1PS76SB21-Q 40 V, 200 mA Schottky barrier diode Production
1PS76SB40-Q General-purpose Schottky diode Production
1PS76SB70-Q General-purpose Schottky diode Production
1PS79SB10 Schottky barrier single diode Production
1PS79SB30-Q 40 V, 0.2 A Schottky barrier diode Production
1PS79SB31-Q Schottky barrier diode Production
1PS79SB40 General-purpose Schottky diode Production
1PS79SB70-Q General-purpose Schottky diode Production
1PS88SB48 General-purpose quadruple Schottky diode Production
BAS40 General-purpose Schottky diode Production
BAS40-04-Q General-purpose dual Schottky diode Production
BAS40-04W General-purpose dual Schottky diode Production
BAS40-05-Q General-purpose dual Schottky diode Production
BAS40-05W-Q General-purpose dual Schottky diode Production
BAS40-06 General-purpose dual Schottky diode Production
BAS40-06W-Q General-purpose dual Schottky diode Production
BAS40-07 General-purpose dual Schottky diode Production
BAS40DY-Q General-purpose dual Schottky diode Production
BAS40H-Q General-purpose Schottky diode Production
BAS40L General-purpose Schottky diode Production
BAS40LS-Q General-purpose Schottky diode Production
BAS40VY-Q General-purpose triple Schottky diode Production
BAS40W General-purpose Schottky diode Production
BAS40XY General-purpose quadruple Schottky diode Production
BAS70-04-Q General-purpose dual Schottky diode Production
BAS70-04W-Q General-purpose dual Schottky diode Production
BAS70-05-Q General-purpose dual Schottky diode Production
BAS70-05W-Q General-purpose dual Schottky diode Production
BAS70-06-Q General-purpose dual Schottky diode Production
BAS70-06W-Q General-purpose dual Schottky diode Production
BAS70-07-Q General-purpose dual Schottky diode Production
BAS70-07S-Q General-purpose dual Schottky diode Production
BAS70-Q General-purpose Schottky diode Production
BAS70H-Q General-purpose Schottky diode Production
BAS70L-Q General-purpose Schottky diode Production
BAS70LS-Q General-purpose Schottky diode Production
BAS70VY-Q General-purpose triple Schottky diode Production
BAS70W-Q General-purpose Schottky diode Production
BAS70XY-Q General-purpose quadruple Schottky diode Production
BAT32ALS-Q General-purpose Schottky diode Production
BAT32LS-Q General-purpose Schottky diode Production
BAT42LS-Q General-purpose Schottky diode Production
BAT46LS-Q General-purpose Schottky diode Production
BAT46WH-Q Schottky barrier diode Production
BAT46WJ-Q Schottky barrier diode Production
BAT54-Q Schottky barrier diode Production
BAT54A-Q Schottky barrier diode Production
BAT54AW-Q Schottky barrier diode Production
BAT54C-Q Schottky barrier diode Production
BAT54CM Schottky barrier double diode Production
BAT54CW-Q Schottky barrier diode Production
BAT54CY-Q Two Schottky barrier dual diodes Production
BAT54H-Q Schottky barrier single diode in small SOD123F package Production
BAT54HGW Schottky barrier single diode Production
BAT54J-Q Schottky barrier single diode Production
BAT54L Schottky barrier diode Production
BAT54QB-Q Schottky barrier diode Production
BAT54QC-Q Schottky barrier diode Production
BAT54S-Q Schottky barrier diodes Production
BAT54SW-Q Schottky barrier diode Production
BAT54T Single Schottky barrier diode EndOfLife
BAT54VY-Q Schottky barrier triple diode Production
BAT54W-Q Schottky barrier diode Production
BAT54XY Schottky barrier quadruple diode Production
BAT721-Q 40 V, 200 mA Schottky barrier diode Production
BAT721A-Q 40 V, 200 mA Schottky barrier dual diode Production
BAT721C-Q 40 V, 200 mA Schottky barrier dual diode Production
BAT721S-Q 40 V, 200 mA Schottky barrier dual diode Production
BAT74 Schottky barrier double diode Production
BAT74S Schottky barrier double diode Production
BAT754 Schottky barrier diode Production
BAT754A Schottky barrier diode Production
BAT754C Schottky barrier diode Production
BAT754L-Q Schottky barrier triple diode Production
BAT754S Schottky barrier diode Production
BAT854AW-Q 40 V, 200 mA Schottky barrier dual diode Production
BAT854CW-Q 40 V, 200 mA Schottky barrier dual diode Production
BAT854SW-Q 40 V, 200 mA Schottky barrier dual diode Production
BAT854W-Q 40 V, 200 mA Schottky barrier diode Production
PMEG3005ELS-Q 30 V, 0.5 A very low VF Schottky barrier rectifier Production
RB520CS3002L 200 mA low VF MEGA Schottky barrier rectifier Production
RB520CS30L 100 mA low VF MEGA Schottky barrier rectifier Production
RB520S30-Q 200 mA low VF Schottky barrier rectifier Production
RB521CS30L-Q 100 mA low VF Schottky barrier rectifier Production
RB521S30-Q 200 mA low VF Schottky barrier rectifier Production
RB530S40-Q 40 V, 0.3 A Schottky barrier diode Production
RB751CS40 Schottky barrier diode Production
RB751S40-Q Schottky barrier diode Production
RB751V40-Q Schottky barrier diode Production
Visit our documentation center for all documentation

Marcom graphics (1)
文件名称 标题 类型 日期

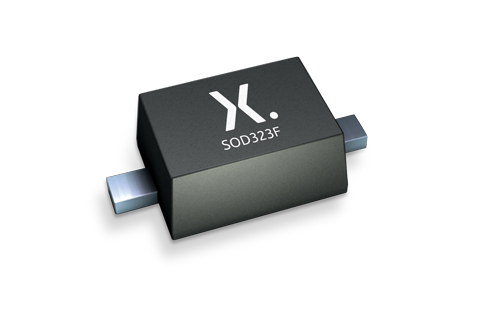

SC-90_SOD323F_mk.png plastic, surface-mounted package; 2 leads; 1.7 mm x 1.25 mm x 0.7 mm body Marcom graphics 2017-01-28

Selection guide (1)
文件名称 标题 类型 日期
Nexperia_Selection_guide_2023.pdf Nexperia Selection Guide 2023 Selection guide 2023-05-10
