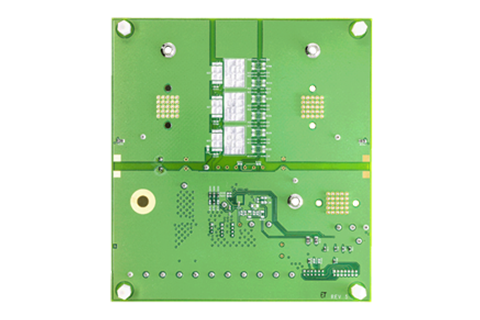

ADI EVAL-LTC4286 54 V、36 A热插拔
ADI LTC4286高功率正热插拔控制器的全功能评估板。此款54 V、36 A热插拔设计为热插拔电源路径的所有外围组件提供了明确示例,包括Nexperia具备增强型SOA的 100 V、2.3 mΩ、LFPAK88封装PSMN2R3-100SSE ASFET。
主要特性与优势
- 需要采用具备强劲的线性模式性能和增强安全工作区域(SOA)的MOSFET来高效可靠地管理浪涌电流。
- PSMN2R3-100SSE采用高可靠性铜夹片LFPAK88封装,提供超低RDSon和增强安全工作区性能。
- Nexperia提供一系列支持热插拔和软启动的专用ASFET (https://www.nexperia.cn/products/mosfets/application-specific-mosfets/asfets-for-hotswap-and-soft-start/#/p=1,s=0,f=,c=,rpp=,fs=0,sc=,so=,es=)
Products on the board (1)
Type number | Description | Status | Quick access | |
---|---|---|---|---|
PSMN2R3-100SSE | N-channel 100 V, 2.3 mOhm MOSFET with enhanced SOA in LFPAK88 | Production |
Products on the board (1)
Type number | Description | Status | Quick access | |
---|---|---|---|---|
PSMN2R3-100SSE | N-channel 100 V, 2.3 mOhm MOSFET with enhanced SOA in LFPAK88 | Production |
