主要特性和优势
- 电流增益匹配至10%、5%或2%
- 提升了电流镜和差分放大器电路的性能
- 基极-发射极电压匹配至2 mV
- 标准双晶体管的简易替代选择(BCM系列)
- 可选择标准双晶体管引脚配置或应用优化型引脚配置
- 简化电路板布局(PMP系列)
- 5引脚类型采用共发射极配置
- 无需进行成本高昂的额外调整
- 多种小型、极小型和超小型封装
关键应用
- 电流镜
- 差分和仪表放大器
- 对数放大器
- 比较器
Parametric search
Products
Type number | Description | Status | Quick access |
---|---|---|---|
BCM856BS; BCM856BS/DG | PNP/PNP matched double transistors | ACT |
|
BCM856BS | 65 V, 100 mA PNP/PNP matched double transistors | Production | |
BCM856DS | 65 V, 100 mA PNP/PNP matched double transistors | Production | |
BCV61 | NPN general-purpose double transistors | ACT |
|
BCV61 | NPN general-purpose double transistors | Production | |
BCV61A | NPN general-purpose double transistors | Production | |
BCV61B | NPN general-purpose double transistors | Production | |
BCV61C | NPN general-purpose double transistors | Production | |
BCV62 | PNP general-purpose double transistors | ACT |
|
BCV62 | PNP general-purpose double transistors | Production | |
BCV62A | PNP general-purpose double transistors | Production | |
BCV62B | PNP general-purpose double transistors | Production | |
BCV62C | PNP general-purpose double transistors | Production | |
BCM53DS | 80 V, 1 A PNP/PNP matched double transistors | Production | |
BCM56DS | 80 V, 1 A NPN/NPN matched double transistors | Production | |
BCM61B | NPN/NPN matched double transistor | Production | |
BCM62B | PNP/PNP matched double transistor | Production | |
BCM846BS | NPN/NPN matched double transistor | Production | |
BCM846BS-Q | NPN/NPN matched double transistor | Production | |
BCM846BSH | 65 V, 100 mA NPN/NPN matched double transistor | EndOfLife | |
BCM846BSH-Q | 65 V, 100 mA NPN/NPN matched double transistor | Production | |
BCM847BS | NPN/NPN matched double transistor | Production | |
BCM847BS-Q | NPN/NPN matched double transistor | Production | |
BCM847BSH | 45 V, 100 mA NPN/NPN matched double transistor | EndOfLife | |
BCM847BSH-Q | 45 V, 100 mA NPN/NPN matched double transistor | Production | |
BCM847BV | NPN/NPN matched double transistor | Production | |
BCM847DS | NPN/NPN matched double transistor | Production | |
BCM847QAS | 45 V, 100 mA NPN/NPN matched double transistors | Production | |
BCM856BS-Q | 65 V, 100 mA PNP/PNP matched double transistors | Production | |
BCM856BSH | 65 V, 100 mA PNP/PNP matched double transistor | EndOfLife | |
BCM856BSH-Q | 65 V, 100 mA PNP/PNP matched double transistor | Production | |
BCM856DS-Q | 65 V, 100 mA PNP/PNP matched double transistors | Production | |
BCM857BS | PNP/PNP matched double transistor | Production | |
BCM857BS-Q | PNP/PNP matched double transistor | Production | |
BCM857BSH | 45 V, 100 mA PNP/PNP matched double transistor | EndOfLife | |
BCM857BSH-Q | 45 V, 100 mA PNP/PNP matched double transistor | Production | |
BCM857BV | PNP/PNP matched double transistor | Production | |
BCM857DS | PNP/PNP matched double transistor | Production | |
BCM857QAS | 45 V, 100 mA PNP/PNP matched double transistors | Production | |
PHPT610035NK | NPN/NPN high power double bipolar transistor | Production | |
PHPT610035NK-Q | NPN/NPN high power double bipolar transistor | Production | |
PHPT610035PK | PNP/PNP matched high power double bipolar transistor | Production | |
PHPT610035PK-Q | PNP/PNP matched high power double bipolar transistor | Production | |
PMP3906AYS | 40 V, 200 mA PNP/PNP matched double transistor | Production | |
PMP3906AYS-Q | 40 V, 200 mA PNP/PNP matched double transistor | Production | |
PMP4201G | 45 V, 100 mA NPN/NPN matched double transistor | NotForDesignIn | |
PMP4201V | 45 V, 100 mA NPN/NPN matched double transistor | Production | |
PMP4201Y | 45 V, 100 mA NPN/NPN matched double transistor | Production | |
PMP4501G | NPN/NPN matched double transistor | EndOfLife | |
PMP4501QAS | 45 V, 100 mA NPN/NPN matched double transistors | Production | |
PMP4501V | 45 V, 100 mA NPN/NPN matched double transistor | Production | |
PMP4501Y | 45 V, 100 mA NPN/NPN matched double transistor | Production | |
PMP5201G | 45 V, 100 mA PNP/PNP matched double transistor | NotForDesignIn | |
PMP5201V | 45 V, 100 mA PNP/PNP matched double transistor | Production | |
PMP5201Y | 45 V, 100 mA PNP/PNP matched double transistor | Production | |
PMP5201Y-Q | 45 V, 100 mA PNP/PNP matched double transistor | Production | |
PMP5501G | EndOfLife | ||
PMP5501QAS | 45 V, 100 mA PNP/PNP matched double transistors | Production | |
PMP5501V | 45 V, 100 mA PNP/PNP matched double transistor | Production | |
PMP5501Y | 45 V, 100 mA PNP/PNP matched double transistor | Production |
Marcom graphics (1) |
|||
---|---|---|---|
File name | Title | Type | Date |

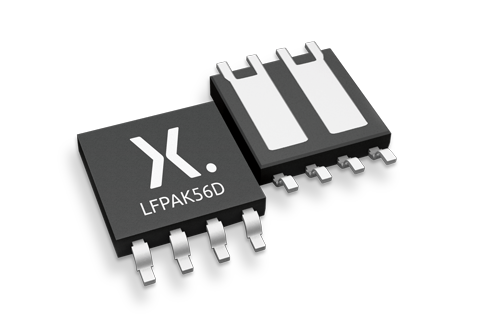

LFPAK56D_SOT1205_mk.png | plastic, single ended surface mounted package (LFPAK56D); 8 leads; 1.27 mm pitch; 4.7 mm x 5.3 mm x 1.05 mm body | Marcom graphics | 2017-01-28 |
